VEIKONG VFD510 IP55 High Performance VFD

VEIKONG Latest New Outlook VFD510 IP55 VFD Vector Control VFD

1. The introduction fo VEIKONG VFD510 IP55 VFD New series model:

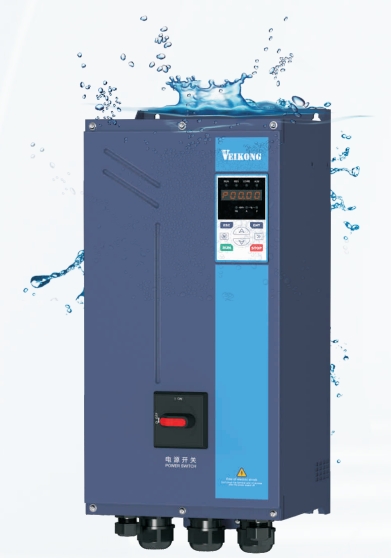

Introducing the game-changing VFD510 IP55 VFD series high protection inverter - your solution to challenging environments! With an impressive IP55 protection grade, this inverter is specifically designed to thrive in environments with excessive dust, oil, and water mist. With an upgraded version of the leading VElKONG VFD530 series, the VFD510 IP55 VFD retains exceptional quality and now offers additional high protection function.

This top-of-the-range inverter is versatile and can drive both asynchronous motors and permanent magnet synchronous motors. It comes with a standard STO function and supports a variety of encoder types and communication interfaces, providing flexibility and convenience.

Our VFD510 IP55 VFD series doesn't just offer excellent performance and reliability, it's also packed with features to make it stand out from the crowd. You'll be impressed with its rich function capabilities and its ability to adapt to a range of environmental conditions.

Invest in the VFD510 IP55 VFD series inverter and stay ahead of the curve, no matter the environment.

2. VEIKONG IP55 VFD After sale service

1. VElKONG offers you 18-month quality guarantee for IP55 VFD. We will take responsibility for any problemscaused during this period. As long as customers provide us with VFD error reports, we will providefree repair parts for them.
2. Please contact your sales representative in a timely manner, if you have any problems during usage of IP55 VFD. Meanwhile, we will build a professional technical team online to solve complex applicationissues for you.

VEIKONG, your trusted supplier!

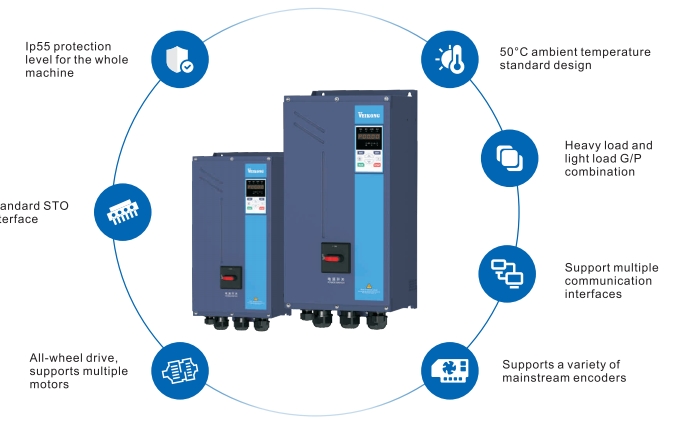

3. The features of VEIKONG new series VFD510 IP55 VFD

1) Independent air duct design
Independent air duct design effectivelyprevents dust from entering the inverterand causing short circuit and other faultsthereby improving reliability;
The use of large air volume and long lifecooling fan effectively reduces the interna!temperature rise of theinverter andensures reliable and stable operation of theinverter.

2) Complete protection system
The whole series including IP55 VFD has STO protection,output short circuit protection to groundovercurrent protection, driver overloadprotection,motor overload protection.driverovertemperature protection,optionaPT100/PT1000/KTY84 motorovertemperature protection,etc
Depending on the fault type, IP55 VFD model can be set tofault free stop, fault deceleration stop, faultcontinue to run, which brings convenienceto on-site emergency handling

3) Automatic spraying process of conformal coating
Multiple high-quality conformal coatingsare used to enhance theenvironmentaladaptability of the product.
The conformal coating adopts automaticspraying process to ensure the uniformityof the circuit board spraying thickness andthe consistency of product batching.

4) Wide voltage input range that complies with international standards for IP55 VFD
IP55 VFD Rated voltage
IP55 VFD Allowable voltagefuctuationrange
Input power
frequency
Single-phase/three-phase 220V models200V~240V
Three-phase380Vmodels:380V~480V
-15%-10%
50Hzor 60Hz.allowablefluctuation range +5%

5) Thermal design simulation experiment
The accurate thermal simulation platform software is used toensure the reliability of thermal simulation. The VFD510 seriesinverters have all undergone thermal simulation tests. Only withinthe thermal simulation safety design requirements, physicaprototypes are developed.After actual testing,the thermasimulation results are very close to the physical test results. Underextreme test conditions, thermal simulation can replace actual loadsimulation, adding an extra layer of scientific thermal testing.

6) Strict temperature rise test
The whole Drive temperature rise test adopts the most stringentcycle overload test to ensure long-term reliable operation underextremeload conditions.
Cyclic overload test: At an ambient temperature of 50°, run at 1.5times the overload current for 1 minute, then run at the ratedcurrent for 4 minutes, and then run at 1.5 times the rated current for1 minute. This continuous cycle runs for 5 minutes per cycle untithe system reaches a thermal equilibrium state and the whole Driveis within the thermal design safety range.

7) Full-cycle testing
During product development, the whole PCB boardwill be systematicallytested.After assembly, thewhole machine will be tested and the EMCenvironment wil be tested.After passing thequalityinspection,a12-hour, 50°C high-temperature aging test will be performed to ensurethe delivery quality of the entire series of products.

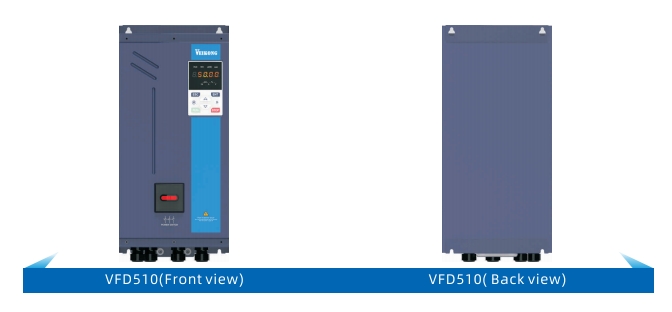

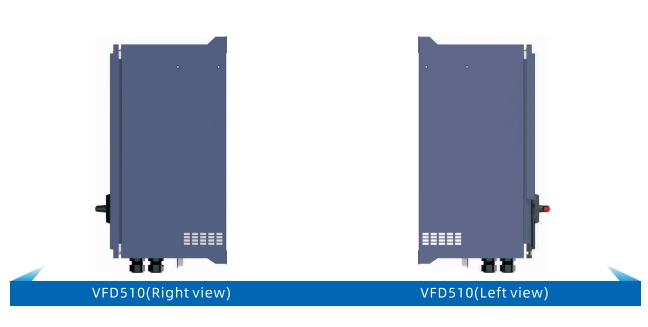

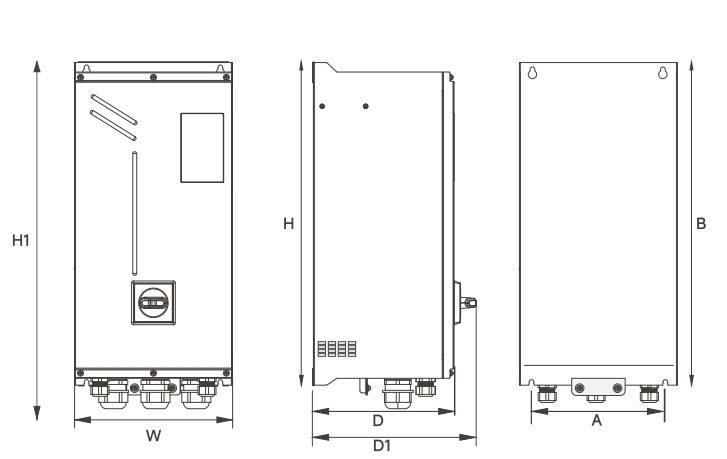

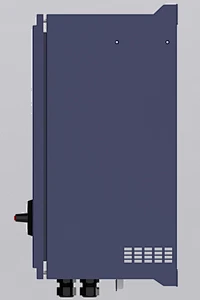

4. VEIKONG IP55 VFD Product Size and all sides showing

VEIKONG IP55 VFD Production Selection Table
