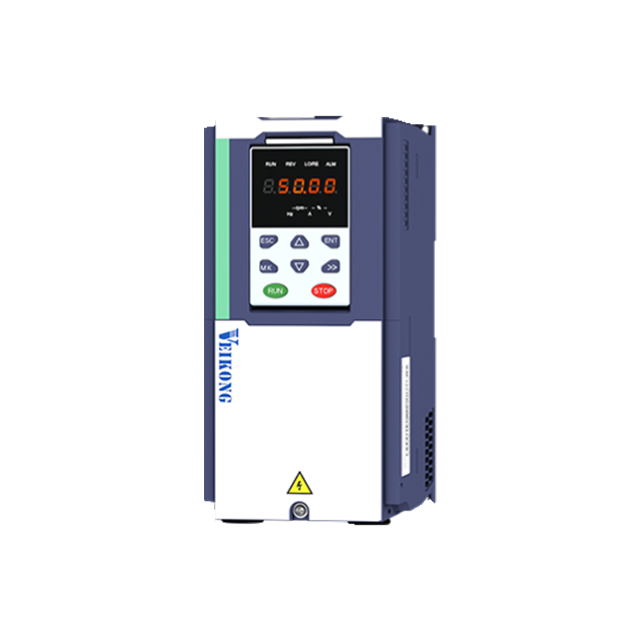

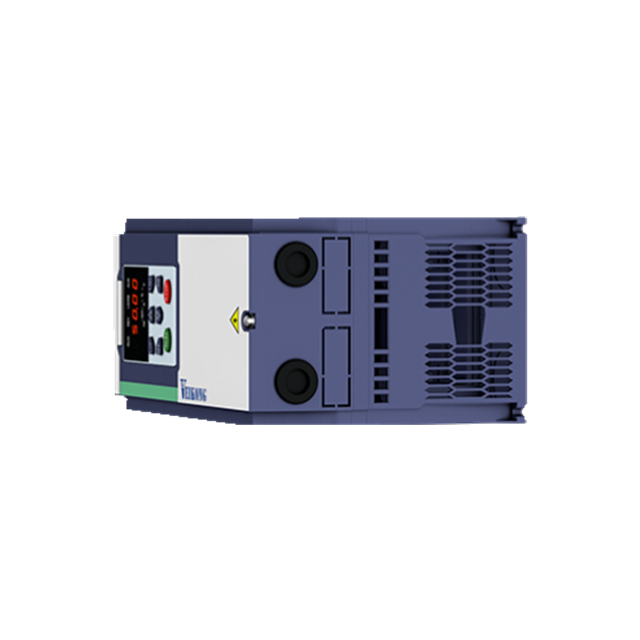

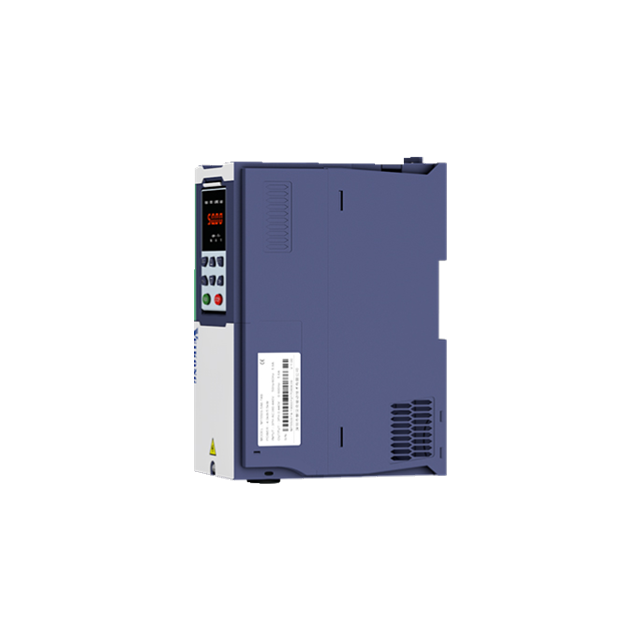

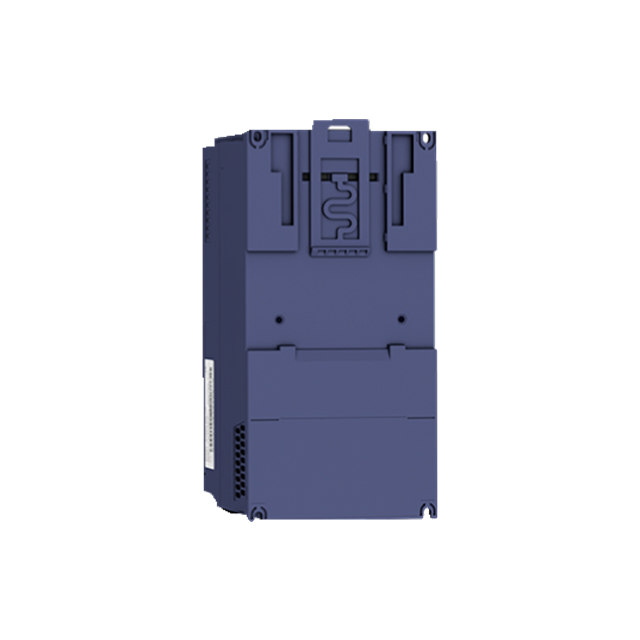

Wide voltage range VFD controller variable frequency drive with strong PC tool commission
VFD500-2R2GT4B
Veikong wide voltage range series 2.2kw VFD controller variable frequency drive adopts the advanced IGBT module design and support strong PC tool commission for better operation.
Quantity
Wide voltage range VFD controller or vfd drive variable frequency drive with strong PC tool commission
Veikong VFD500 series vfd drive or vfd controller product features
1. Veikong vfd drive supportsc wide voltage range: single-phase/three-phase 220V model three-phase 380V model 200V~240V 380V~440V
2. Veikong vfd drive with advanced design: Small size, advanced thermal design, greatly smaller than the same type of inverter
3. Veikong vfd controller with big torque in low frequency ,fast response for output torque
4. Veikong vfd controller with fast dynamic response: In SVC mode, the acceleration and deceleration time can be set arbitrarily (even 0.0s) The inverter runs stably without alarming, esp in some occassions requiring quick response
Veikong 2.2kw vfd controller compared with the common brands in the market
| Brand | Other brand | Veikong vfd drive |
| 1 | Use traditional IGBT single-tube hardware design | Use integrated IGBT module, higher efficiency |
| 2 | Common heat dissipation structure and air duct design for IGBT single tube design | Air duct completely independent, better protection and better heat dissipation |
| 3 | The EMC is set on the side wall of the chassis, which is inconvenient to operate | The EMC is positioned on the front, visible and easy to operate |
| 4 | Air outlet area is small | Air outlet area is big, It's easier to disassemble |
Veikong vfd controller products different application pics
What's the definition of vfd drive or the working principle of vfd controller?
A VFD controller or vfd drive uses what is known as a PWM (Pulse Width Modulation) technique to generate the AC voltage at variable frequencies.
At the heart of a VFD controller is an inverter circuit consisting of an array of semiconductor devices such as IGBTs (Insulated-Gate Bipolar Transistors) or MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). These devices switch on and off rapidly to generate a series of short pulses of electrical energy, with the width or duration of each pulse being modulated to control the power and voltage output.
The frequency of the pulses is then varied using a complex algorithm that adjusts the on/off timing of the semiconductor devices. By increasing or decreasing the number of pulses per second, the VFD drive or vfd controller can control the frequency of the AC output power. This in turn controls the speed of the motor, which is directly proportional to the frequency of the supplied voltage.
The VFD controller monitors the motor's performance using sensors that measure variables such as speed, current, and temperature. Based on this information, the controller adjusts the frequency and voltage output of the inverter circuit as needed to maintain optimal motor performance and efficiency. This allows the motor to be run at different speeds and accelerations, depending on the specific application requirements.
Overall, the working principle of a VFD controller involves sophisticated electronics that accurately regulate the frequency and voltage of the power supplied to the motor, enabling precise control over motor speed and torque.
At the heart of a VFD controller is an inverter circuit consisting of an array of semiconductor devices such as IGBTs (Insulated-Gate Bipolar Transistors) or MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors). These devices switch on and off rapidly to generate a series of short pulses of electrical energy, with the width or duration of each pulse being modulated to control the power and voltage output.
The frequency of the pulses is then varied using a complex algorithm that adjusts the on/off timing of the semiconductor devices. By increasing or decreasing the number of pulses per second, the VFD drive or vfd controller can control the frequency of the AC output power. This in turn controls the speed of the motor, which is directly proportional to the frequency of the supplied voltage.
The VFD controller monitors the motor's performance using sensors that measure variables such as speed, current, and temperature. Based on this information, the controller adjusts the frequency and voltage output of the inverter circuit as needed to maintain optimal motor performance and efficiency. This allows the motor to be run at different speeds and accelerations, depending on the specific application requirements.
Overall, the working principle of a VFD controller involves sophisticated electronics that accurately regulate the frequency and voltage of the power supplied to the motor, enabling precise control over motor speed and torque.
What's the application can vfd drive or vfd controller used for?
here are a few more specific industries and applications where VFD drive or vfd controller are commonly used:
1. CNC Machining: VFD drive or vfd controller can be used in CNC (Computer Numerical Control) machines, such as lathes, milling machines, and routers, to control the speed and torque of the spindle motor. This can help improve precision and surface finish quality, reduce tool wear, and extend tool life.
2. Compressors: VFD drive or vfd controller can be used in compressor systems, such as air compressors and refrigeration compressors, to regulate the motor speed and output pressure. This can help improve energy efficiency and reduce operating costs, while also extending equipment life.
3. Food and Beverage Production: VFD drive can also be used in food and beverage production applications to control the speed of mixers, conveyors, pumps, and other equipment. This can help improve process control, reduce waste, and optimize production efficiency.
4. Pumps: VFD drive can be used in a variety of pumping applications, including water supply, wastewater treatment, and oil and gas production. By controlling the speed of the motor, VFD drive can help optimize pump flow rates, reduce energy consumption, and minimize maintenance requirements.
5. Fans: VFD drive are used in fan systems, such as those used in HVAC applications, to control the speed of the fan motor. This can help optimize airflow and improve energy efficiency, while also reducing noise levels and improving occupant comfort.
Overall, there are many different industries and applications where VFD drive or vfd controller are used to control the speed and torque of AC electric motors. These applications can help improve process control, reduce energy usage, minimize maintenance requirements, and extend equipment life.
1. CNC Machining: VFD drive or vfd controller can be used in CNC (Computer Numerical Control) machines, such as lathes, milling machines, and routers, to control the speed and torque of the spindle motor. This can help improve precision and surface finish quality, reduce tool wear, and extend tool life.
2. Compressors: VFD drive or vfd controller can be used in compressor systems, such as air compressors and refrigeration compressors, to regulate the motor speed and output pressure. This can help improve energy efficiency and reduce operating costs, while also extending equipment life.
3. Food and Beverage Production: VFD drive can also be used in food and beverage production applications to control the speed of mixers, conveyors, pumps, and other equipment. This can help improve process control, reduce waste, and optimize production efficiency.
4. Pumps: VFD drive can be used in a variety of pumping applications, including water supply, wastewater treatment, and oil and gas production. By controlling the speed of the motor, VFD drive can help optimize pump flow rates, reduce energy consumption, and minimize maintenance requirements.
5. Fans: VFD drive are used in fan systems, such as those used in HVAC applications, to control the speed of the fan motor. This can help optimize airflow and improve energy efficiency, while also reducing noise levels and improving occupant comfort.
Overall, there are many different industries and applications where VFD drive or vfd controller are used to control the speed and torque of AC electric motors. These applications can help improve process control, reduce energy usage, minimize maintenance requirements, and extend equipment life.
