High end level PMSM inverter
VFD530-4R0G/5R5PT4B
Veikong VFD530 series PMSM inverters can be used both in synchronous and asynchoronous motors with special brake logic mechanism for crane and hoist
Quantity
Veikong PMSM inverter used in different application with new version LED display
VFD530 series PMSM inverter products features
1. PMSM inverter support special brake logic mechanism for crane and hoist
2. VFD for synchronous motors support magnetic flux brake gain
3. VFD for synchronous motors tension control and torque mode control
4. VFD for synchronous motors can ahcieve up to 200% starting torque at Ohz
2. VFD for synchronous motors support magnetic flux brake gain
3. VFD for synchronous motors tension control and torque mode control
4. VFD for synchronous motors can ahcieve up to 200% starting torque at Ohz
5. VFD for synchronous motors support comparator and logic unit/controller
7. VFD for synchronous motors support sleeping function
7. VFD for synchronous motors support sleeping function
8. VFD for synchronous motors support output frequency up to 3000HZ
9. VFD for synchronous motors support high capacity 256K TI DSP with faster response and higher accuracy
What is PMSM inverter, which applications may request VFD for synchronous motors?
A PMSM (Permanent Magnet Synchronous Motor) inverter/ VFD for synchronous motors is an electronic device that converts DC (Direct Current) power to AC (Alternating Current) power, specifically for driving PMSM motors. These motors have permanent magnets on the rotor and are widely used in industrial and automotive applications, where high efficiency and precise control of motor speed and torque are required. PMSM inverters use advanced control and modulation techniques to achieve high efficiency, high power density, and low noise operation, making them an ideal choice for electric vehicle drivetrains, robotics, and renewable energy systems.
There are many request for PMSM inverter, since most of industries would ask for VFD for synchronous motors, there are most applications would require it.
1. HVAC systems: HVAC (Heating, Ventilation, and Air Conditioning) systems require precise control of motor speed to achieve optimal air flow and energy efficiency. PMSM inverters with VFD capability can provide this control, ensuring that the motor operates at the correct speed and power level.
2. Robotics: Robots require precise and reliable motion control to perform their tasks efficiently. PMSM inverters with VFD capability can provide this control, ensuring that the motor moves precisely and with the required speed and torque.
3. Renewable energy systems: Renewable energy systems such as wind turbines and solar arrays require high-performance motors that can operate at variable speeds and torque levels. PMSM inverters with VFD capability can provide this control, ensuring that the motor operates efficiently and that energy is generated and stored effectively.
4. Electric vehicles: Electric vehicles require high-performance motors that can operate at variable speeds depending on driving conditions. PMSM inverters with VFD capability can provide this control, ensuring that the motor operates efficiently and that the vehicle performs optimally.
Overall, any application that requires precise speed and torque control will benefit from the use of PMSM inverters with VFD capability. These devices can provide highly efficient and reliable control of synchronous motors, enabling the motors to perform optimally in a wide range of applications.
2. Robotics: Robots require precise and reliable motion control to perform their tasks efficiently. PMSM inverters with VFD capability can provide this control, ensuring that the motor moves precisely and with the required speed and torque.
3. Renewable energy systems: Renewable energy systems such as wind turbines and solar arrays require high-performance motors that can operate at variable speeds and torque levels. PMSM inverters with VFD capability can provide this control, ensuring that the motor operates efficiently and that energy is generated and stored effectively.
4. Electric vehicles: Electric vehicles require high-performance motors that can operate at variable speeds depending on driving conditions. PMSM inverters with VFD capability can provide this control, ensuring that the motor operates efficiently and that the vehicle performs optimally.
Overall, any application that requires precise speed and torque control will benefit from the use of PMSM inverters with VFD capability. These devices can provide highly efficient and reliable control of synchronous motors, enabling the motors to perform optimally in a wide range of applications.
VFD530 PMSM inverter or VFD for synchronous motors series product specification
| Item | Specification |
| Control mode | V/f control Sensorless flux vector control without PG card（SVC） Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control、Torque control（SVC and VC） |
| Speed range | 1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
| Speed control accuracy | ±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
| Speed response | 5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
| Frequency range | 0.00～3000.00HZ(VF) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
| Input frequency resolution | Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |

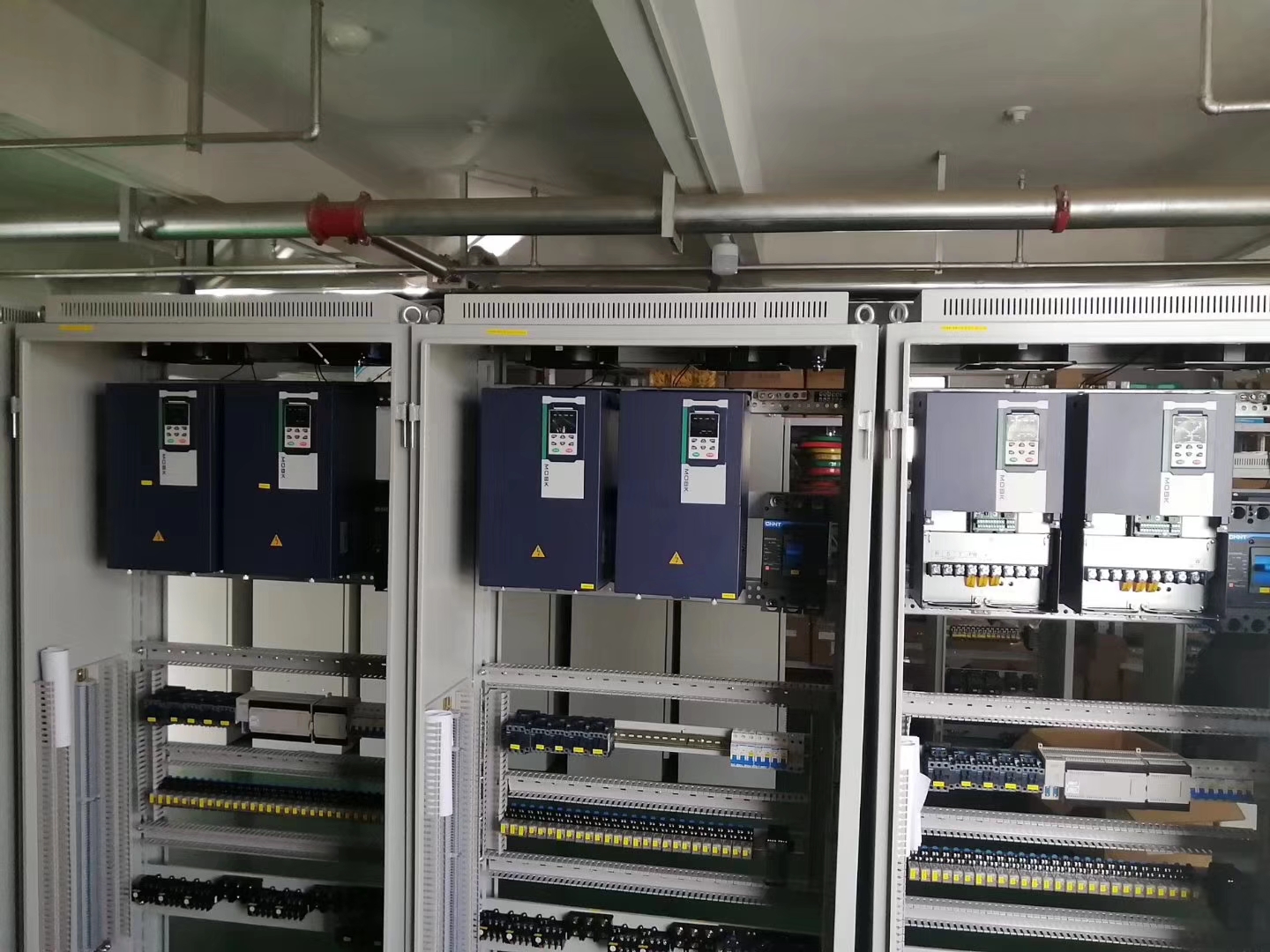

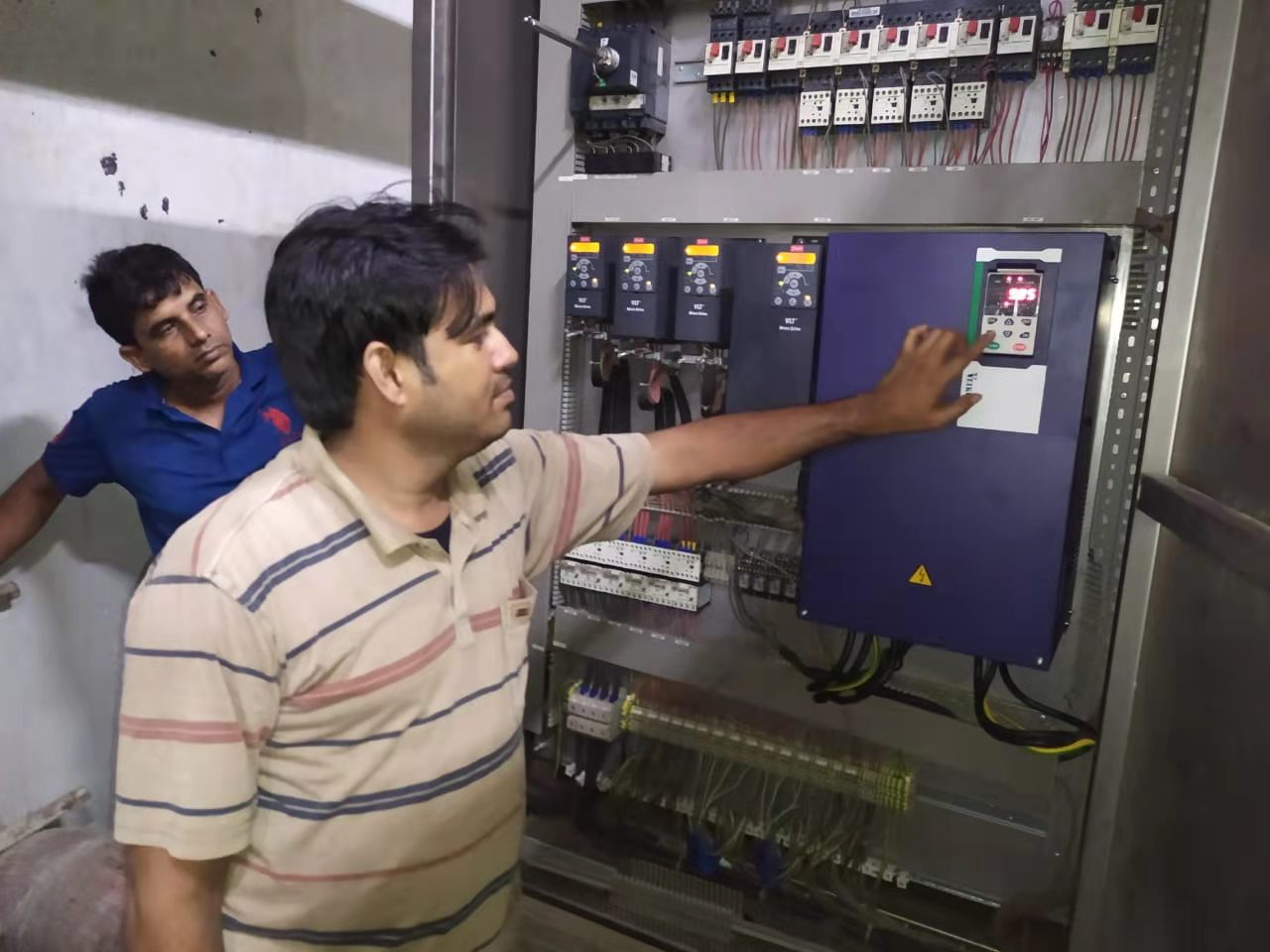

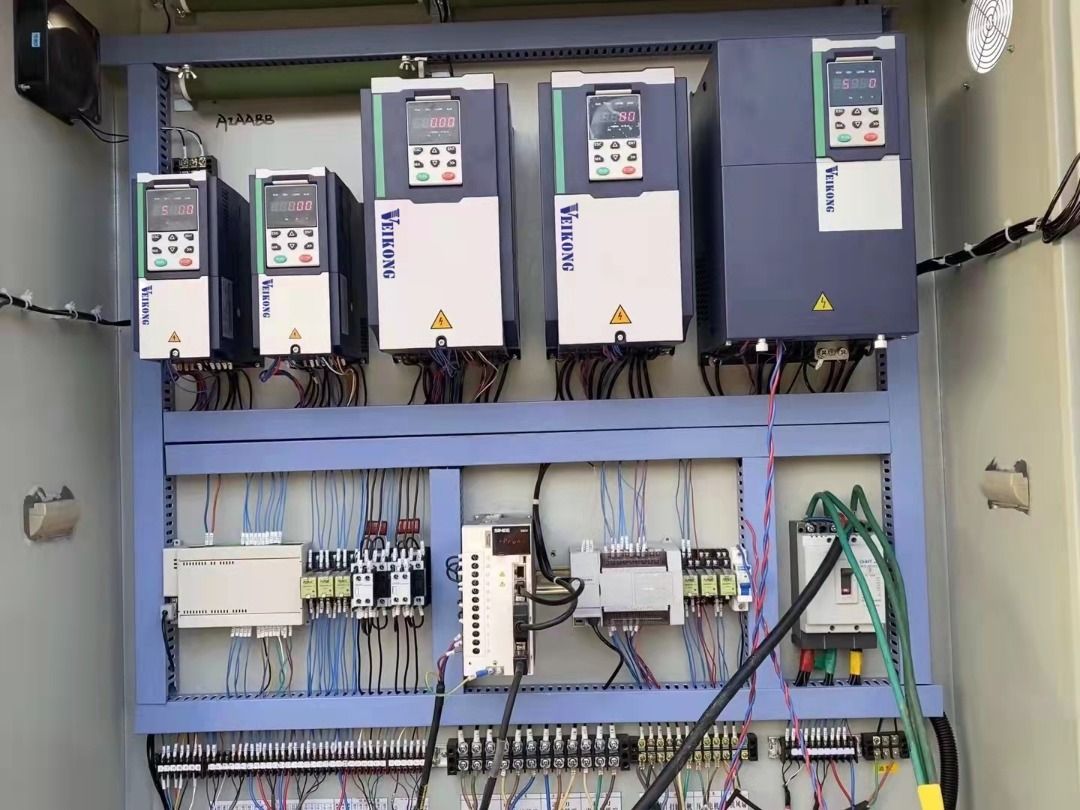

Veikong VFD for synchronous motors VFD540 series products application pics
