mini size economic drive
VFD500M-2R2GT4B
Veikong economic model VFD variable frequency inverters VFD500M series with more compact design outsize, easy for installation.
Quantity
Veikong mini drive VFD variable frequency inverters with more compact design
Veikong economic models mini drive vfd VFD500M series product features
1. VF and sensorless vector control
2. Starting torque 150% at 0.25Hz in SVC
3. HDI and HDO function, automatic torque boost
4. Support LCD display with external wire connection used in cabinet
5. Easy startup with simplified parameters
6. Compact size and more economical for some simply application
Veikong economic models mini drive vfd VFD500M series specification data
| Model | Power capacity (KVA) | Input current (A) | Input current (A) | Adaptable motor(KW) | Bake unit | |
| Light load | Heavy load | |||||
| VFD500M-R75GT4B | 1.6 | 3.2 | 2.5 | 4.2 | 0.75 | Internal |
| VFD500M-1R5GT4B | 2.8 | 4.7 | 4.2 | 5.6 | 1.5 | |
| VFD500M-2R2GT4B | 3.7 | 7.8 | 5.6 | 9.4 | 2.2 | |
| VFD500M-4ROGT4B | 6.2 | 11.6 | 9.4 | 13 | 4.0 | |
| VFD500M-5R5GT4B | 8.6 | 15.6 | 13 | 17 | 5.5 | |
| VFD500M-7R5GT4B | 11.2 | 20.5 | 17 | 23 | 7.5 | |
Veikong economic model mini drive vfd VFD500M series product introduction
Using a more compact size VFD (Variable Frequency Drive) (mini drive vfd) with a better price can have several advantages, such as:
1. Cost savings: A more compact size VFD mini drive vfd with a better price can be more cost-effective compared to larger VFDs, reducing the overall cost of the system.
2. Space savings: Compact size VFDs take up less space, which can be especially important in applications where space is limited.
3. Improved efficiency: Compact size VFDs can be designed with the latest technology to improve efficiency and reduce energy consumption.
4. Easier installation and maintenance: Compact size VFDs are easier to install and maintain, making them more user-friendly for technicians and reducing downtime.
5. Customizable options: Compact size VFDs often come with customizable options, allowing users to tailor the drive to their specific application needs.
However, it's important to note that choosing a VFD should not be based solely on size or price. Other factors, such as the application requirements, operating conditions, and quality and reliability of the VFD, should also be considered.
1. Cost savings: A more compact size VFD mini drive vfd with a better price can be more cost-effective compared to larger VFDs, reducing the overall cost of the system.
2. Space savings: Compact size VFDs take up less space, which can be especially important in applications where space is limited.
3. Improved efficiency: Compact size VFDs can be designed with the latest technology to improve efficiency and reduce energy consumption.
4. Easier installation and maintenance: Compact size VFDs are easier to install and maintain, making them more user-friendly for technicians and reducing downtime.
5. Customizable options: Compact size VFDs often come with customizable options, allowing users to tailor the drive to their specific application needs.
However, it's important to note that choosing a VFD should not be based solely on size or price. Other factors, such as the application requirements, operating conditions, and quality and reliability of the VFD, should also be considered.

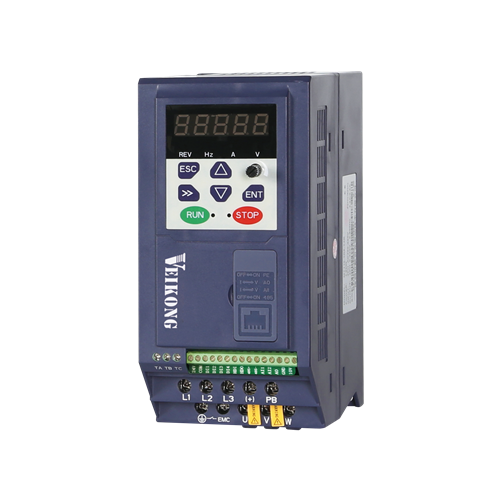

VFD500M series mini drive vfd pics
Questions and answers of VFD500M series mini drive vfd
1. Does VFD500M series mini drive vfd supports display external?
A: Yes, even the LED display is fixed here, but there is also a port for connecting with other model display only with a wire between them.
2. Does VFD500M series mini drive vfd more compact size for better space saving projects?
A: Yes, more compact size means in the same area, we can intsall more vfds here.
3. Does VFD500M series mini drive vfd more price competitive in the market?
A: Yes, Veikong VFD500M series with better price than VFD500 series.
