macro mode solar water pump controller
VFD500-40T00550-PV
Veikong solar water pump controller the Maximum Power Point Tracking can reach up to more than 99% and has received many nice feedback from our clients all over the world.
Quantity
Veikong 99% Maximum Power Point Tracking solar water pump controller with macro mode
Veikong solar irrigation solar vfd or mppt solar water pumping controller working principle explanation
A solar irrigation solar vfd or mppt solar water pumping controller,solar pump inverter,solar pump controller,solar water pump inverter,solar pump drive,solar water pump controller,solar mppt vfd,solar mppt frequency inverter,solar frequency inverter,solar pump vsd,solar frequency inverter,solar vfd are all key words IT is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.
Veikong solar irrigation solar vfd or mppt solar water pumping controller product features
1. solar irrigation solar vfd or mppt solar water pumping controller support Maximum MPPT efficiency 99%
2. solar irrigation solar vfd or mppt solar water pumping controller with special solar mppt mode and PID mode
3. solar irrigation solar vfd or mppt solar water pumping controller support LCD display
4. solar irrigation solar vfd or mppt solar water pumping controller support GPRS function and remote control
5. solar irrigation solar vfd or mppt solar water pumping controller support IM and PM pump
Veikong solar irrigation solar vfd or mppt solar water pumping controller specification
| Voltage | 220V | 380V |
| Max input DC voltage | 450V | 800V |
| RecommendedMPPTvoltagerange | 250~ 350VDC | 400~600VDC |
| Recommended input voltage | 305V | 530V |
| MPPTefficiency | 99% | |
| Input channel | 2 | |
| Rated output voltage | 3-phase 220VAC | 3-phase 380VAC |
| Output frequency range | 0~60Hz | |
| Max efficiency of the machine | 97% | |
| Ambient temperature range | -10°C~50°C,deratingif thetemperatureis above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20 | |
| Altitude | Below 1000m;above1%for everyadditional100m. | |
| Standard | CE IEC | |

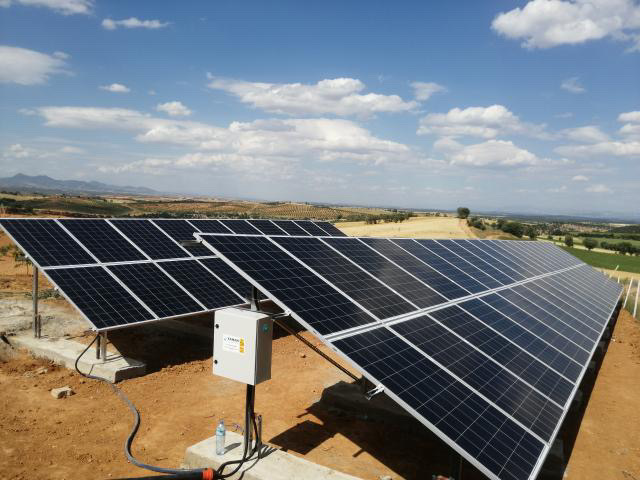

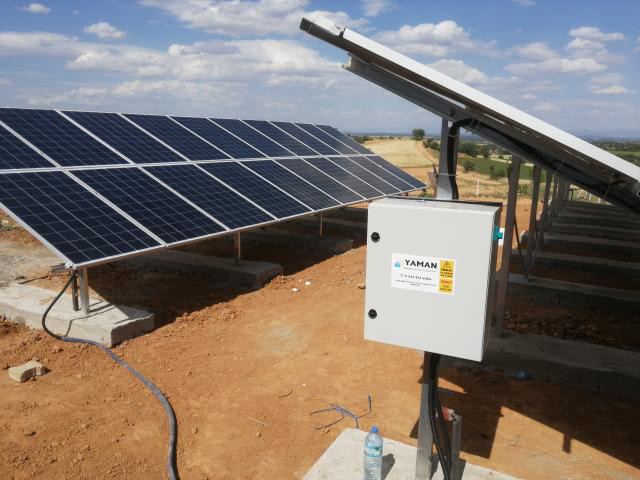

Veikong solar irrigation solar vfd or mppt solar water pumping controller used areas

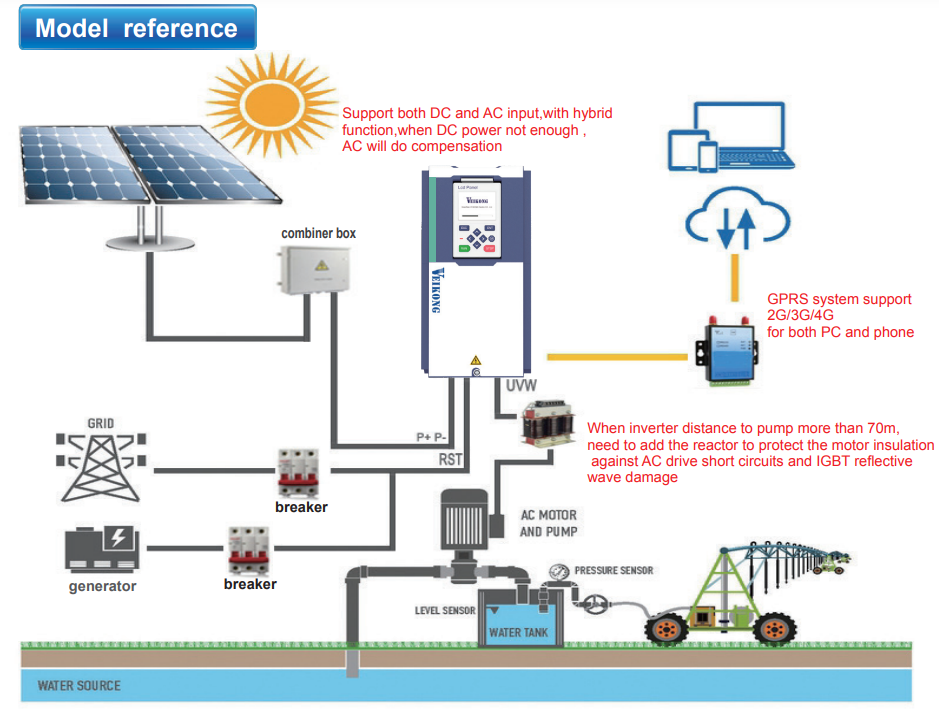

How solar irrigation solar vfd or mppt solar water pumping controller working in the agriculture irrigation water system?
What kind of advantage can bing to the water system?
Solar irrigation solar VFD (Variable Frequency Drive) or MPPT (Maximum Power Point Tracking) solar water pumping controllers work by converting the DC power generated by solar panels into AC power that can be used to drive an AC water pump. These controllers regulate the flow of water pumped from a well, borehole, or surface water source to the irrigated field or crops.
The advantage of using solar irrigation VFD or MPPT solar water pumping controllers in agriculture irrigation water systems is:
1. Cost-effective: Solar-powered water pumping systems significantly reduce electricity bills, as they derive their power from the sun and do not require electricity from the grid.
2. Environmentally friendly: A solar-powered water pumping system operates without releasing any harmful pollutants into the environment making it a sustainable approach to water management systems.
3. Reliable and Efficient: MPPT and VFD controllers help ensure that the pump is operating as efficiently as possible. This makes the system reliable and ensures efficient use of available resources.
4. Remote operation: Solar irrigation systems allow for remote operations, making it suitable for agricultural operations located in remote areas where the grid is not available or where power reliability is poor.
5. Long-Lasting: Solar-powered water pumping systems are durable, low-maintenance systems, with a long lifespan and hassle-free maintenance requirements.
Overall, the solar irrigation VFD and MPPT water pumping controller helps ensure a reliable and cost-effective water supply for agricultural irrigation water systems while ensuring sustainability and environmental conservation.
The advantage of using solar irrigation VFD or MPPT solar water pumping controllers in agriculture irrigation water systems is:
1. Cost-effective: Solar-powered water pumping systems significantly reduce electricity bills, as they derive their power from the sun and do not require electricity from the grid.
2. Environmentally friendly: A solar-powered water pumping system operates without releasing any harmful pollutants into the environment making it a sustainable approach to water management systems.
3. Reliable and Efficient: MPPT and VFD controllers help ensure that the pump is operating as efficiently as possible. This makes the system reliable and ensures efficient use of available resources.
4. Remote operation: Solar irrigation systems allow for remote operations, making it suitable for agricultural operations located in remote areas where the grid is not available or where power reliability is poor.
5. Long-Lasting: Solar-powered water pumping systems are durable, low-maintenance systems, with a long lifespan and hassle-free maintenance requirements.
Overall, the solar irrigation VFD and MPPT water pumping controller helps ensure a reliable and cost-effective water supply for agricultural irrigation water systems while ensuring sustainability and environmental conservation.
