high end 7DIs VFD
VFD580-5R5-T4B

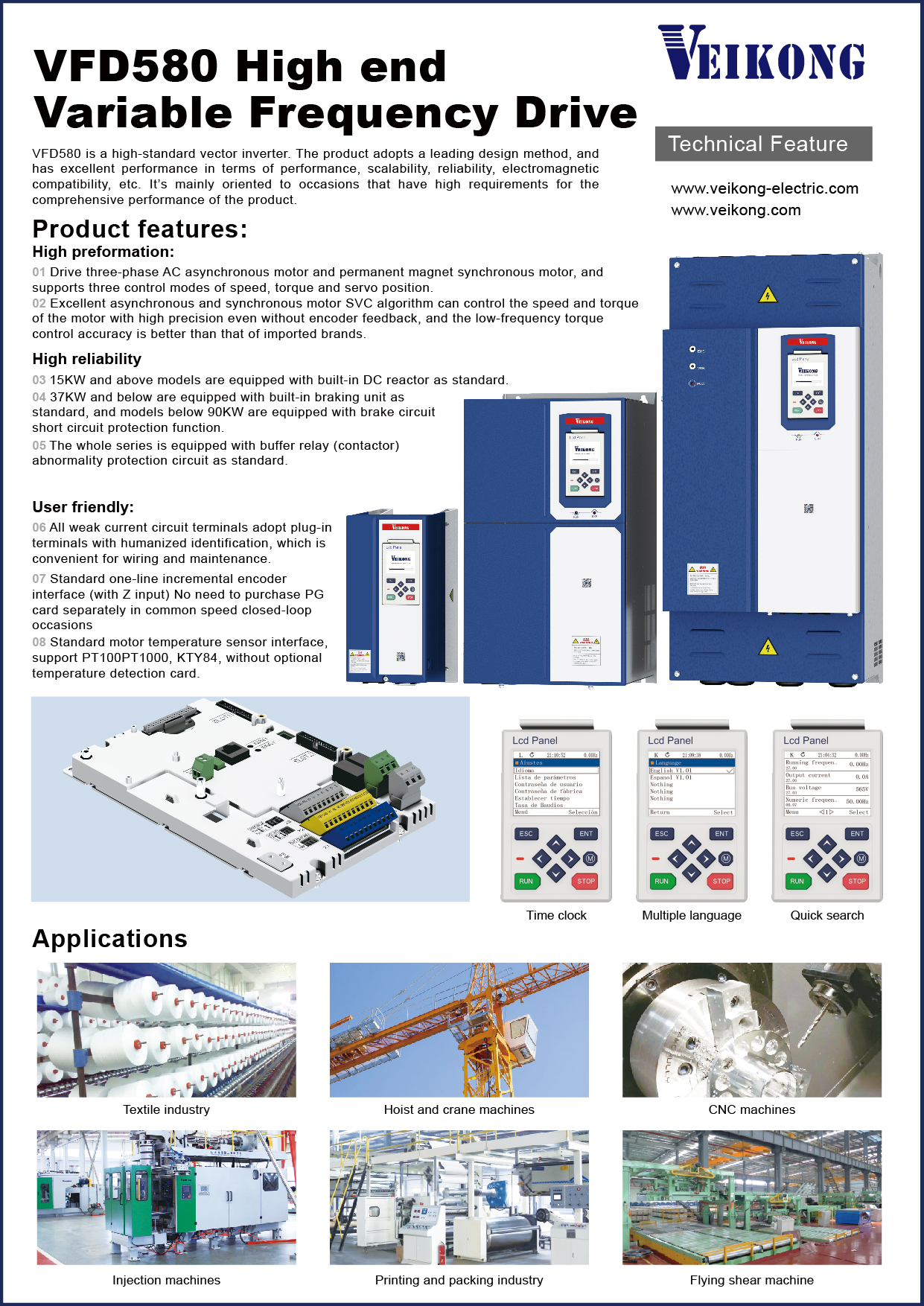

VFD580 drive 7 DI VFD adopts leading design methods, showing excellent performance like scalability, reliability,elec-tromagnetic compatibility and other aspects, mainly targeting occasions with high demands product with comprehensive performance. Veikong as the VFD manufacturer, we always try our best to promote newcomer VFD
Quantity
Veikong high end 7 DI VFD VFD580(newcomer VFD) series with strong comprehensive functions
Veikong as a professional VFD manufacturer in China, we do try our best on research newcomer VFD to satisfy more clients need.
Like our VFD580 series 7 DI VFD, which can be more convenient in some applications request more DI terminal.
Besides, Veikong this model newcomer VFD do support other different practical functions. This model 7 DI VFD is our newcomer VFD, and gathered many nice features of general purpose other brand newcomer VFD. 7 DI VFD with 7 DI terminals is very convenient for our end users. Since we do receive many feedback from our clients for 7 DI VFD, so we create the newcomer VFD.
Veikong always devoted ourselves to such kind of practical newcomer VFD.

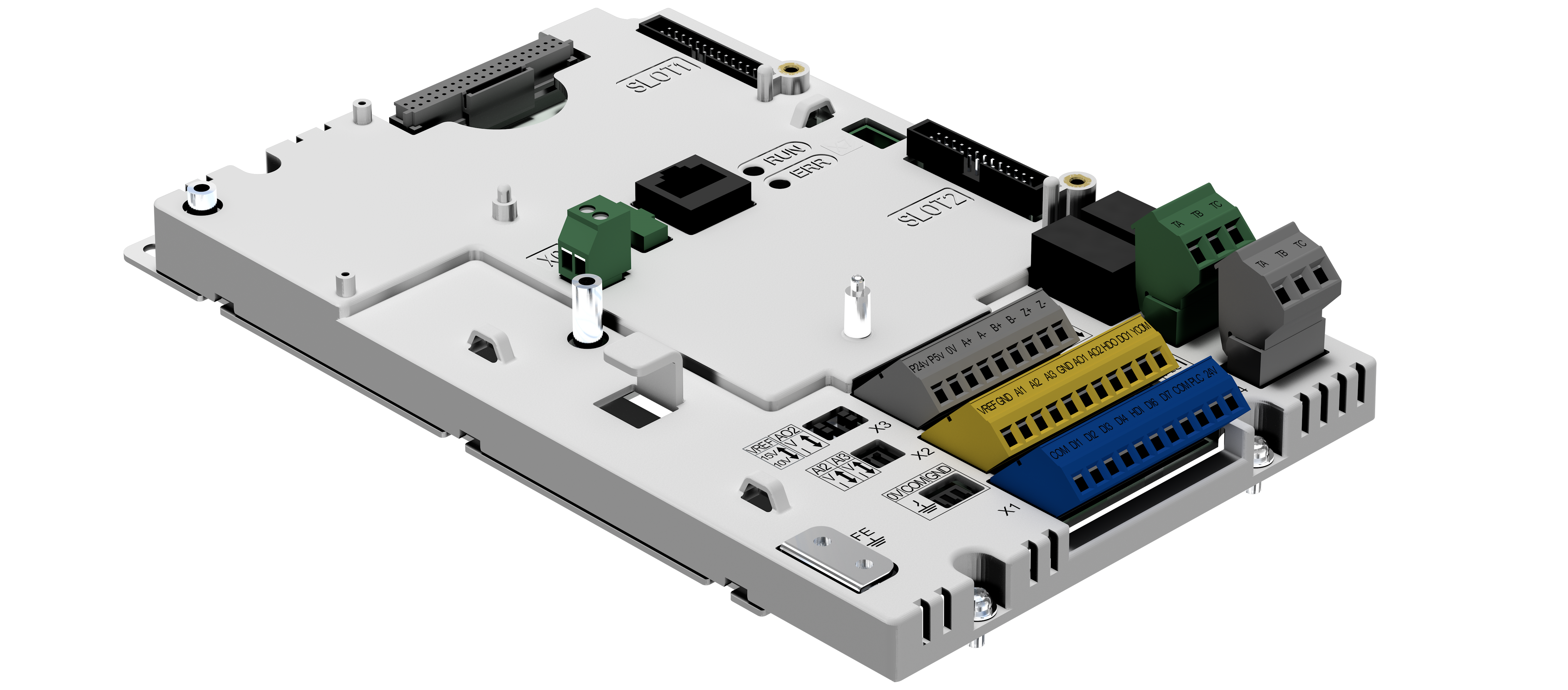

Veikong VFD580 7 DI VFD(newcomer VFD) well designed control board
Veikong VFD580 7 DI VFD(newcomer VFD) series product features for reference
1. Veikong 7 DI VFD(newcomer VFD) support rich communication interface inlcuding Canopen, Modbus RTU, Profinet and Ethercat etc
2. Veikong 7 DI VFD(newcomer VFD) support compatible with various encoders, incremental HTL/TTL, resolver, SinCos interface encoder, smart-Abs interface encoder and SSI/ BISSinterface encoder
3. Veikong 7 DI VFD(newcomer VFD) support compatible with multiple motors like asynchronous motor, servo motor，synchronous motor;
4. Veikong 7 DI VFD with protection from all sides including three-phase current detection, short circuit protection to ground, charging circuit abnormal protection and brake resistor short circuit protection
The Veikong VFD580 7DI VFD(newcomer VFD) series latest model is a game-changer in the high-end market, particularly for clients seeking precision in their diverse applications. Satisfying our clients' needs is our top priority, and their feedback is crucial in driving our product quality and technical advancement. At Veikong, we value our clients' opinions and continuously gather suggestions from them to keep improving. This approach has contributed to our sustained growth and success in meeting our clients' demands. Trust Veikong to provide unparalleled satisfaction and cutting-edge technology in all our products.
With the joint efforts of Veikong R&D groups for several years, our latest model VFD580 7DI VFD(newcomer VFD) series came out with powerful and practical functions including position servo control, standard one-way incremental encoder interface, and excellent SVC algorithm which can achieve the higher requirements in some occasions where there needs better and more accurate performance. VFD580 series 7 DI VFD(newcomer VFD) is developed based on VFD500 series with better performance such as wider frequency range and carrier frequency which can be up to 1000HZ and 16Khz separately, and more digital input and output terminals. Standard buffer relay can protect circuit in abnormal situations. If you want to know more about this great product, please contact me at any time~ Veikong VFD580 series 7 DI VFD(newcomer VFD), a trustworthy high performance vector Drive for you to choose!
Veikong VFD580 series 7 DI VFD(newcomer VFD) highlights
1. Veikong 7 DI VFD support rich communication interface like RS485 RTU, Modbus, Profinet, Ethercat
2. Veikong 7 DI VFD support compatible with multiple motors
Asynchronous motor, servo motor，synchronous motor;
Asynchronous motor, servo motor，synchronous motor;
3. Veikong 7 DI VFD with protection from all sides
Three-phase current detection,Charging circuit abnormal protection,Short circuit protection to ground,Brake resistor short circuit protection
Three-phase current detection,Charging circuit abnormal protection,Short circuit protection to ground,Brake resistor short circuit protection
4. Security function
STO(Safe Torque Off) function,compliant with IEC 62061-SIL3.
STO(Safe Torque Off) function,compliant with IEC 62061-SIL3.
5.Hardware configuration
From frame size C, the built-in DC reactor is standardStandard motor temperature sensor interface, support PT100, PT1000, KTY84, PTC and other inputStandard one encoder interface, support NPN type HTL input, or complementary type TTL input;Fully independent air duct design, no derating at 50°C ambient temperature
From frame size C, the built-in DC reactor is standardStandard motor temperature sensor interface, support PT100, PT1000, KTY84, PTC and other inputStandard one encoder interface, support NPN type HTL input, or complementary type TTL input;Fully independent air duct design, no derating at 50°C ambient temperature
6. Powerful performance
Unique online identification technology to adapt to various complex applicationsStrong speed-up ability of weak magnetic field, higher loop bandwidth;Frequency conversion servo integrated design, integrated senseless vector and closed-loopvector control, supports three operating modes of torque/speed/position.
Unique online identification technology to adapt to various complex applicationsStrong speed-up ability of weak magnetic field, higher loop bandwidth;Frequency conversion servo integrated design, integrated senseless vector and closed-loopvector control, supports three operating modes of torque/speed/position.
7. User friendly
All weak current circuits adopt plug-in design, which is convenient for installation andmaintenance:
MTSOP1 colorful LCD display can support multiple languagesand graphical operation, bringing a new user experience.
All weak current circuits adopt plug-in design, which is convenient for installation andmaintenance:
MTSOP1 colorful LCD display can support multiple languagesand graphical operation, bringing a new user experience.
VFD580 series 7 DI VFD(newcomer VFD) product power range
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase: 400V | ||||
| VFD580/586-2R2-T4B | 5.6A | 2.2KW | Size A | Standard built in |
| VFD580/586-4R-T4B | 9.4A | 4KW | ||
| VFD580/586-5R5-T4B | 13A | 5.5KW | ||
| VFD580/586-7R5-T4B | 17A | 7.5KW | Size B | |
| VFD580/586-011-T4B | 25A | 11KW | ||
| VFD580/586-015-T4B | 32A | 15KW | Size C | |
| VFD580/586-018-T4B | 37A | 18KW | ||
| VFD580/586-022-T4B | 45A | 22KW | ||
| VFD580/586-030-T4B | 60A | 30KW | Size D | |
| VFD580/586-037-T4B | 75A | 37KW | ||
| VFD580/586-045-T4(B) | 90A | 45KW | Size E | Optional built in |
| VFD580/586-055-T4(B) | 110A | 55KW | ||
| VFD580/586-075-T4(B) | 152A | 75KW | Size F | Optional built in |
| VFD580/586-090-T4(B) | 176A | 90KW | ||
| VFD580/586-110-T4 | 210A | 110KW | Size G | Circumscribed |
| VFD580/586-132-T4 | 253A | 132KW | ||
| VFD580/586-160-T4 | 304A | 160KW | Size H | |
| VFD580/586-200-T4 | 380A | 200KW | Size I | |
| VFD580/586-220-T4 | 426A | 220KW | ||
| VFD580/586-250-T4 | 465A | 250KW | ||
| VFD580/586-280-T4 | 520A | 280KW | Size J | |
| VFD580/586-315-T4 | 585A | 315KW | ||
